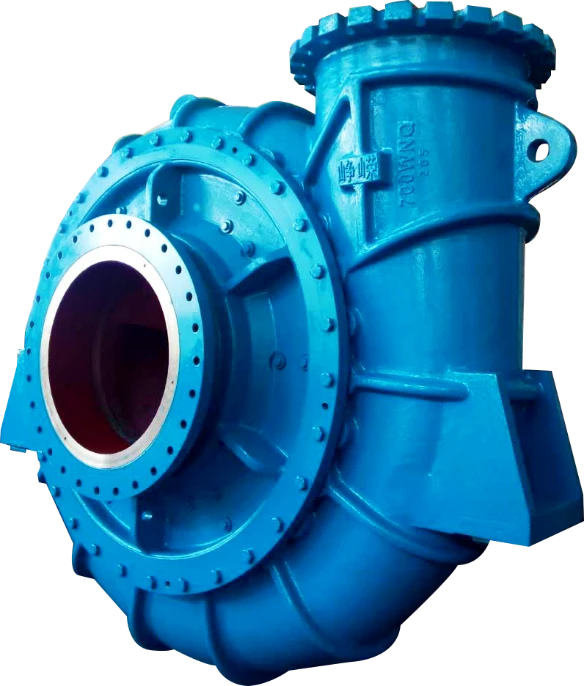

Gold dredge pump is a specialized centrifugal pump developed by Shijiazhuang Zhengrong Pump Co., Ltd. for gold mining and placer dredging operations. Based on the company's mature WN dredging pump technology, it is optimized for handling abrasive slurries containing gold particles, with structural enhancements to withstand the unique wear conditions of gold mining. The Gold dredge pump adopts high-chromium wear-resistant alloy materials for key components, ensuring durability in harsh working environments. Manufactured in compliance with ISO9001 quality standards, each unit undergoes performance testing at the company's testing station to ensure it meets operational requirements for flow rate, head and wear resistance.
Product Parameters
|
Indicator |
Specification |
|
Flow Rate |
50-800 m³/h |
|
Head |
15-60 m |
|
Motor Power |
37-250 kW |
|
Maximum Particle Size |
≤80 mm |
|
Material Hardness |
58-62 HRC |
|
Seal Type |
Double-lip mechanical seal |
|
Operating Temperature |
-10℃ ~ 60℃ |
|
Weight |
800-5500 kg |
Inspection Process
1.After sandblasting and machining, and before protective treatment and painting, the products are inspected for dimensions, hardness, and non - destructive testing (NDT).
2.In stress-concentrated areas, magnetic particle testing (MT) and penetrant testing (PT) are used to detect cracks. The acceptance criterion is that there are no cracks in this area.
3.Surface inspection and non - destructive testing comply with DIN1690 Class 4 standard.
4.If defects are found, they must be thoroughly repaired; products that cannot be repaired shall be scrapped.
5.If the castings in Group C and Group S do not meet the drawing tolerance requirements or have machining defects, they must be thoroughly repaired; products that cannot be repaired shall be scrapped.
6.Inspection of impellers and pump casings is carried out on a flat surface; inspection of other castings is carried out on an adjustment workbench.
7.The inspection includes the hardness inspection item.
FAQ
Q: Do you accept custom orders?
A: Yes, we do. We can provide products made of cast steel (carbon steel, stainless steel, wear - resistant steel) and cast iron (high - chromium cast iron, ductile iron, gray cast iron), as well as various castings (such as pump components: rings, water chambers etc.). The weight range of the castings is from 50 kg to 20 tons. Please communicate and confirm with our online customer service before placing an order.
Q: Can the Gold dredge pump be used in saltwater environments?
A: Yes, we offer a 316SS stainless steel version for coastal gold mining operations, which provides corrosion resistance in saltwater with a service life extension of 40% compared to standard materials.
Q: What maintenance is required for continuous operation?
A: Routine maintenance includes checking the mechanical seal every 400 hours, inspecting the impeller for wear every 800 hours, and replacing the lubricating oil every 1200 hours. We provide a detailed maintenance manual with each pump.
