As a reputable supplier of pumps used for slurry, I've witnessed firsthand the critical role these pumps play in various industries. From mining to wastewater treatment, slurry pumps are the workhorses that keep operations running smoothly. One of the fundamental aspects of ensuring the efficient and reliable operation of a slurry pump is understanding its starting methods. In this blog post, I'll delve into the different starting methods of a slurry pump, providing insights that can help you make informed decisions for your specific applications.
Direct On - Line (DOL) Starting
Direct On - Line starting is the simplest and most straightforward method of starting a slurry pump. In this method, the pump motor is directly connected to the power supply, and full voltage is applied to the motor terminals at the moment of startup. This causes the motor to draw a high inrush current, typically 5 - 7 times the rated current of the motor.
The main advantage of DOL starting is its simplicity. It requires minimal control equipment, which means lower initial costs. It also provides the fastest acceleration of the pump motor, allowing the pump to reach its operating speed quickly. However, the high inrush current can cause several problems. It can lead to voltage dips in the power supply system, which may affect other equipment connected to the same supply. Additionally, the high mechanical stress on the motor and the pump components during startup can reduce their lifespan.
For small - to medium - sized slurry pumps with relatively low power ratings, DOL starting can be a viable option. For example, in some small - scale mining operations where the power supply is stable and the pump size is not too large, DOL starting can be used effectively.
Star - Delta Starting
Star - Delta starting is a method commonly used for larger slurry pump motors. In this method, the motor is initially connected in a star configuration during startup. When the motor reaches a certain speed, it is then switched to a delta configuration for normal operation.
When the motor is connected in star, the voltage across each phase of the motor winding is reduced to 1/√3 (approximately 0.58) of the line voltage. This results in a significant reduction in the starting current, typically around one - third of the current drawn during DOL starting. As the motor reaches a suitable speed, the switch to the delta configuration allows the motor to operate at full voltage and deliver its rated power.
The advantage of star - delta starting is the reduced starting current, which minimizes the impact on the power supply system and reduces the mechanical stress on the motor and pump components. However, this method requires additional switching equipment, which increases the initial cost and complexity of the system. Also, the transition from star to delta can cause a brief surge in current and torque, which may need to be carefully managed.
Soft Starter Starting
A soft starter is an electronic device that controls the voltage applied to the motor during startup. It gradually increases the voltage to the motor over a preset time period, allowing the motor to accelerate smoothly. This results in a controlled starting current, which can be adjusted according to the requirements of the application.
Soft starters offer several advantages. They can significantly reduce the inrush current, minimizing the impact on the power supply and other connected equipment. They also provide a smooth start, which reduces the mechanical stress on the pump and motor, leading to longer equipment life. Additionally, soft starters can be programmed to provide different starting profiles, such as constant current starting or ramp - up starting, depending on the specific needs of the slurry pump application.
However, soft starters are more expensive than DOL or star - delta starters. They also require proper maintenance and may be sensitive to electrical disturbances.
Variable Frequency Drive (VFD) Starting
A Variable Frequency Drive, also known as an adjustable - speed drive, is a sophisticated device that controls the speed and torque of the motor by varying the frequency and voltage of the power supply. When used for starting a slurry pump, a VFD can provide a very smooth and controlled startup.
The main advantage of using a VFD for starting is the ability to precisely control the motor speed. This allows the pump to start at a low speed and gradually increase to the required operating speed. As a result, the starting current can be kept very low, and the pump can be operated at the most efficient speed for the specific application. VFDs also offer energy - saving benefits, as they can adjust the motor speed according to the actual demand of the slurry pumping process.
However, VFDs are the most expensive starting option. They require more complex installation and programming, and they may generate harmonic distortion in the power supply system, which needs to be addressed with appropriate filtering equipment.
Choosing the Right Starting Method
When choosing a starting method for a slurry pump, several factors need to be considered. The power rating of the pump motor is a crucial factor. Smaller motors may be suitable for DOL starting, while larger motors may require more advanced methods such as star - delta, soft starters, or VFDs.
The characteristics of the power supply system also play an important role. If the power supply is weak or unstable, a starting method that reduces the inrush current, such as a soft starter or VFD, may be necessary. The nature of the slurry being pumped is another consideration. For example, if the slurry has a high viscosity or contains large particles, a smooth and controlled start may be required to prevent clogging or damage to the pump.

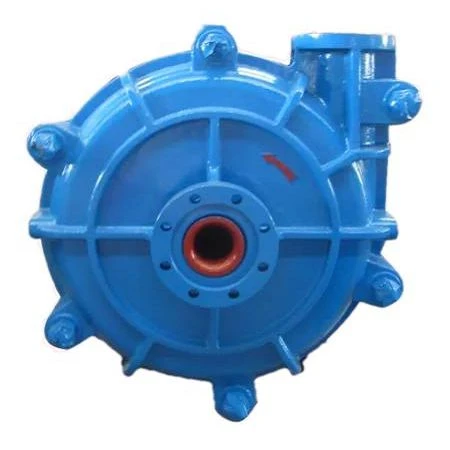

As a supplier of pumps used for slurry, we offer a wide range of pumps, including High Head Slurry Pump, Submersible Sludge Pump, and Mud Slurry Pump. Our team of experts can help you choose the right pump and the most suitable starting method for your specific application.
If you're in the market for a slurry pump or need advice on starting methods, don't hesitate to contact us. We're here to provide you with the best solutions for your slurry pumping needs. Whether you're a small - scale operation or a large industrial facility, we have the expertise and products to meet your requirements.
References
- "Pump Handbook" by Igor J. Karassik et al.
- "Electrical Machines and Drives" by Stephen J. Chapman.
